POZ-8300 Ozone analyzer V2.2
Category：
Keywords：
Product details
Typical application
1) Disinfectant content measurement and control during ozone disinfection of swimming pool water;
2) sterilization measurement and control of production water in the pharmaceutical industry;
3) Sterilization measurement and control of pure water, mineral water, and various beverage waters;
4) Measurement and control of sterilization of tap water, drinking water, and industrial pure water;
Product Overview
The water quality ozone on-line analyzer, which includes related pH and temperature measurement technical index attributes, forms an integrated wall-mounted ozone on-line analyzer. Based on the research results of the potentiostat sensor, this instrument only USES the response principle of ion-selective electrochemical principle to ozone to realize the quantitative analysis of ozone content in water.The whole device is equipped with water-sample decompression, filtration and constant-current devices, creating a continuous and stable working environment for the sensor, rather than simply matching the sensor to the sold meter.The system uses a 7-inch touch display. The main interface can switch the screen style (built-in multiple styles) according to preferences.It has the advantages of convenient operation, dynamic data display, historical data storage, measurement and calibration, etc .;Electrical box and fluid box are installed separately, in compliance with international safety regulations for water and electricity separation;This system is widely used in on-line monitoring and control of various ozone disinfected water concentrations.
Main technical specifications
|
System Model
|
Online ozone analyzer
|
|
| Measurement configuration |
ozone（O3）/pH/temperature
|
|
|
Measurement range
|
ozone
|
（0.00-2.00）mg/L（ppm） （0.00-20.00）mg/L
|
|
pH
|
2.00-12.00
|
|
|
temperature
|
（0.0-99.9）℃
|
|
|
Resolution
|
ozone
|
0.01mg/L（ppm）
|
|
pH
|
0.01
|
|
|
temperature
|
0.1℃
|
|
|
Accuracy
|
ozone
|
10% FS
|
|
pH
|
0.1pH
|
|
|
temperature
|
±0.5℃
|
|
|
Sensor life
|
pH/ozone sensor
|
12months（The service life is closely related to the measurement medium and maintenance frequency）
|
|
Communicati on interface
|
RS485
|
MODBUS RTU communication protocol
|
|
（4-20）mA output
|
Number of channels |
Double channels
|
|
Technical feature
|
Isolated, reversible , completely adjustable, instrument/transmitter dual mode
|
|
|
Channel configuration
|
Programmable point to ozone,Temperature,pH
|
|
|
Loop resistance
|
400Ω(Max)，DC 24V
|
|
|
Transmission
|
±0.1mA
|
|
|
Control output
|
Number of channels
|
Double channels
|
|
Contact mode
|
The first and second for photoelectric switch
|
|
|
Load capacity
|
Load current 50mA（Max），AC/DC 30V
|
|
|
Control point
|
Programmable function（Ozone,Temperature,pH,Timing）
|
|
|
Power supply
|
Connected to electric supply AC80-260V;50/60Hz,compatible with all international market power standards(110V;220V;260V;50/60Hz). （110V;220V;260V;50/60Hz）
|
|
|
Working environment
|
Temperature:（5-50）℃；relative humidity:≤85% RH（non condensation）
|
|
|
Storage environment
|
Temperature:（-20-70）℃；relative humidity:≤85%RH（non condensation）
|
|
|
Installation
|
Wall mounted（with the preset back cover）
|
|
|
Cabinet weight
|
≤10kg
|
|
|
Cabinet dimension
|
570*mm*280mm*130mm（H×W×D）
|
|

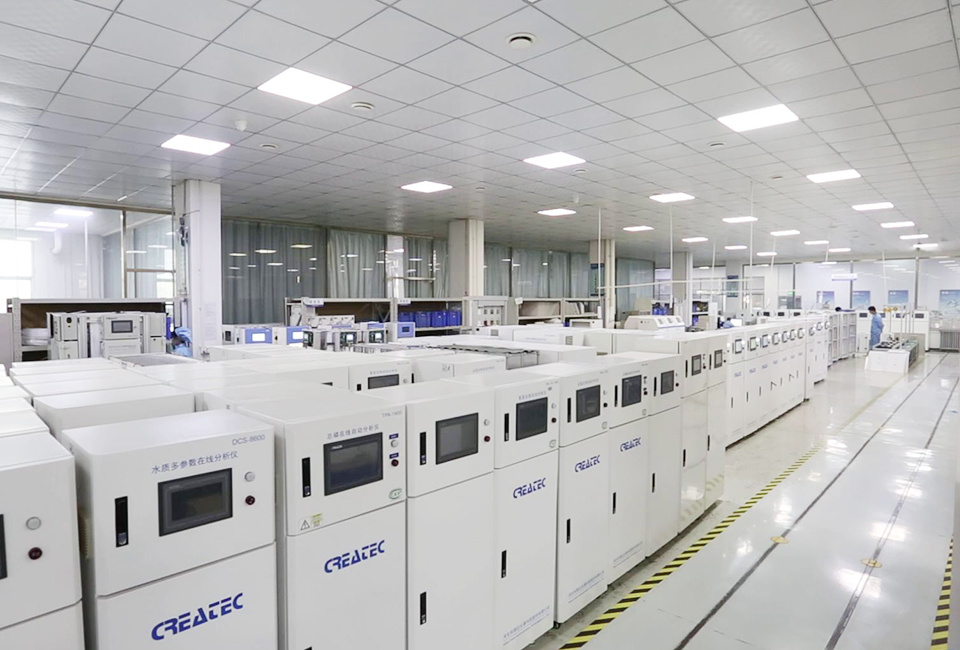

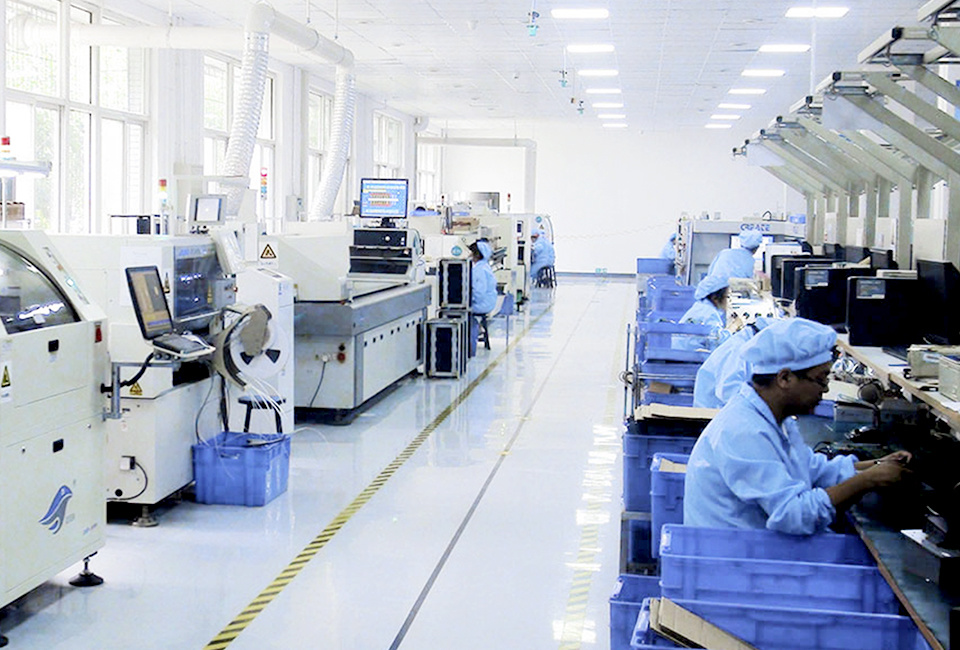

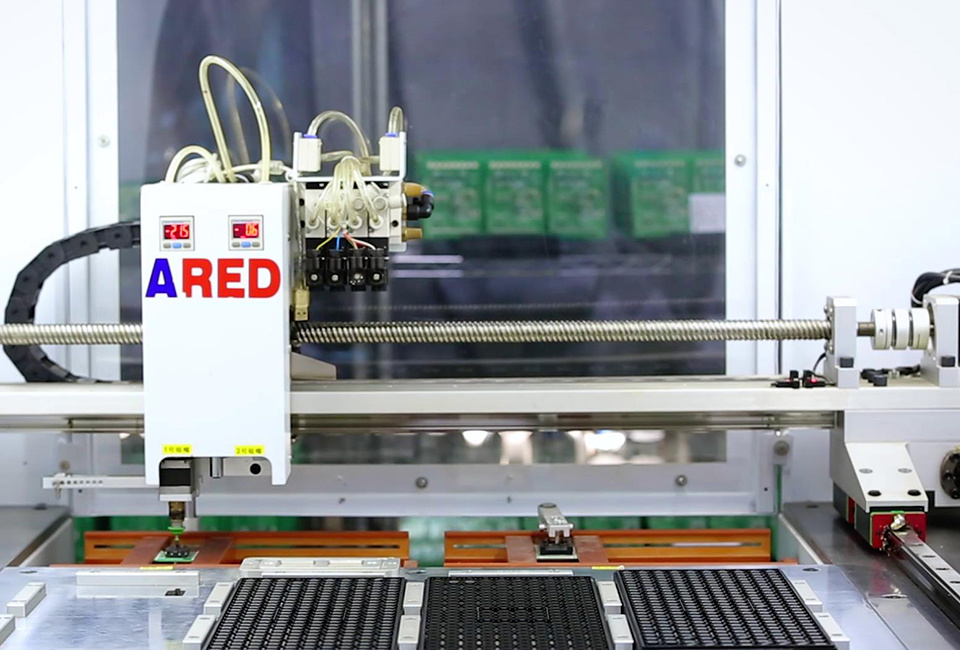

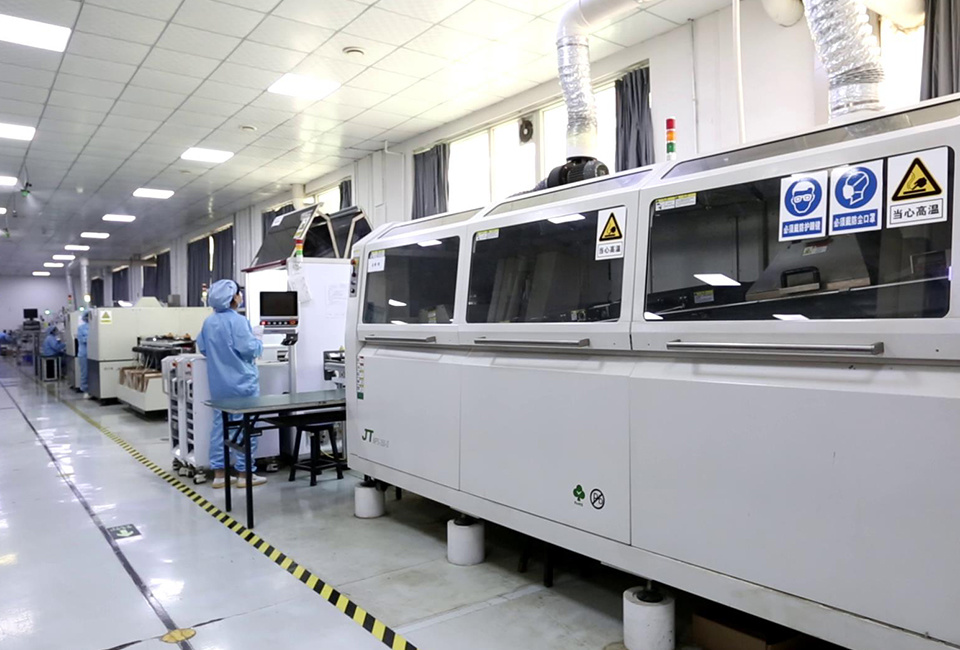

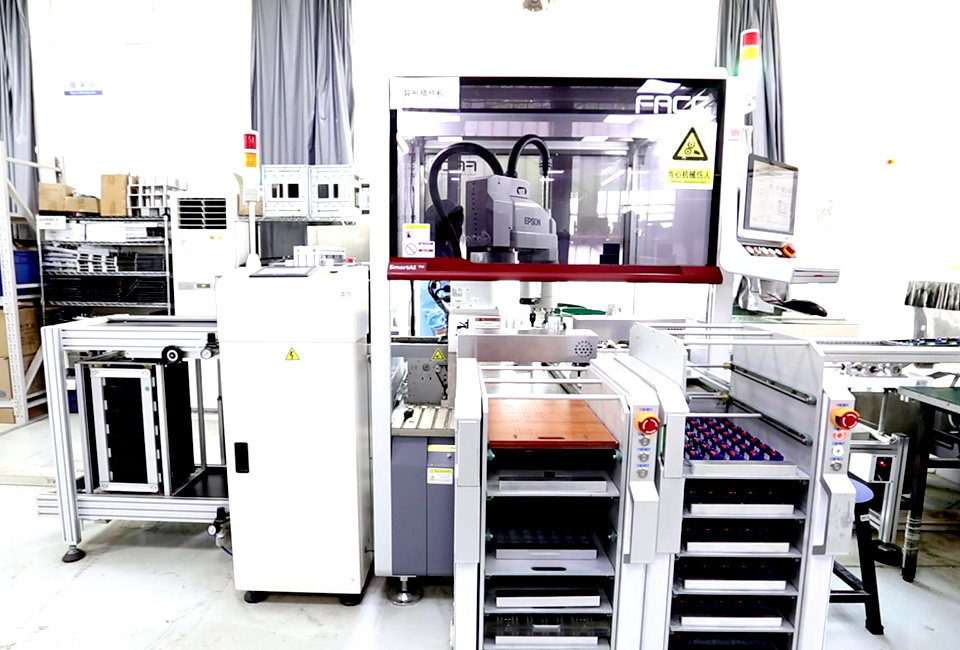

Workshop
